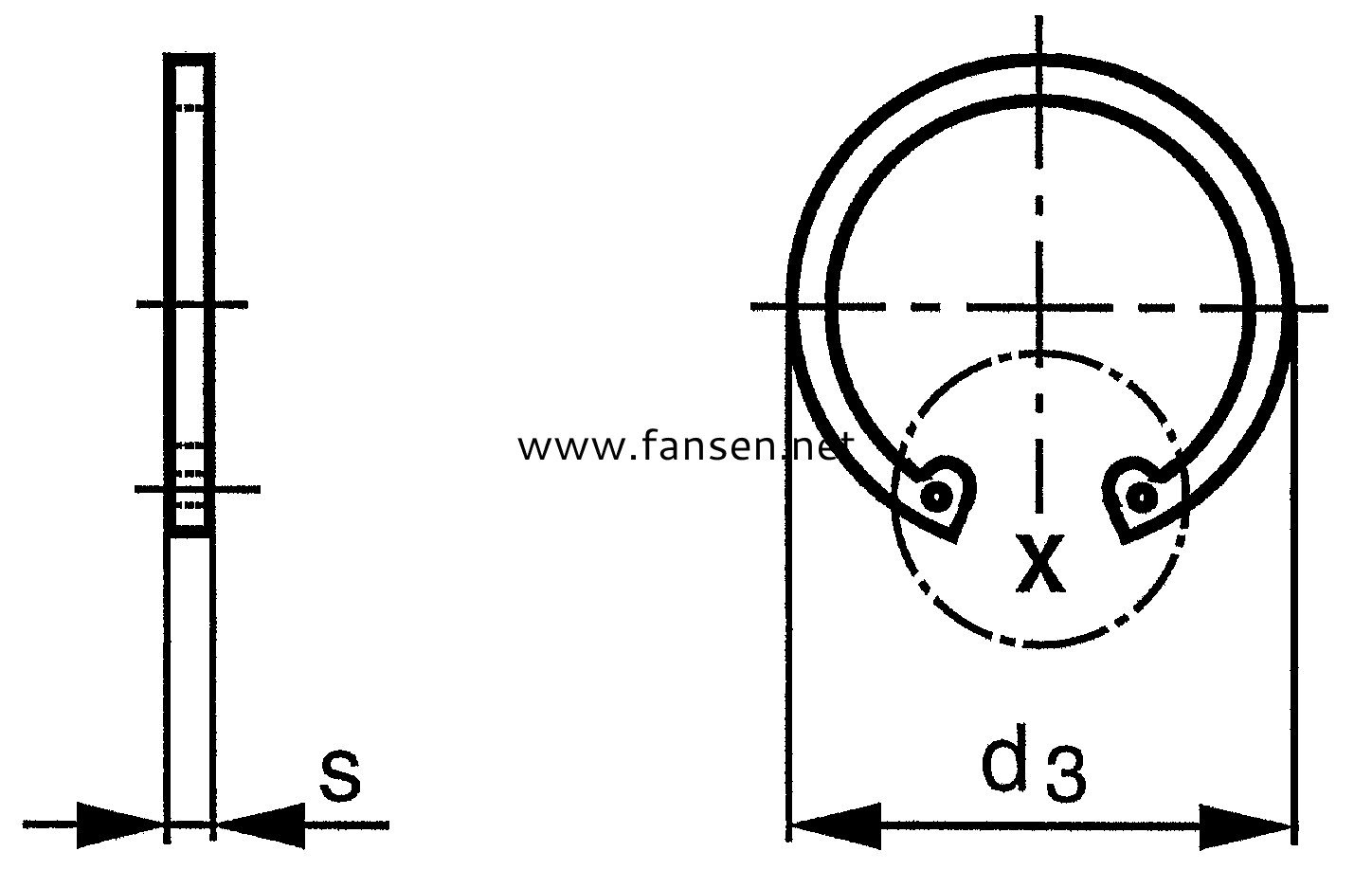

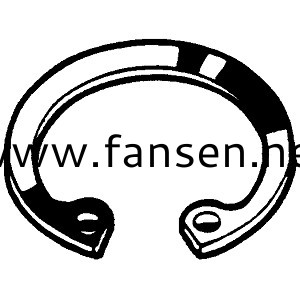

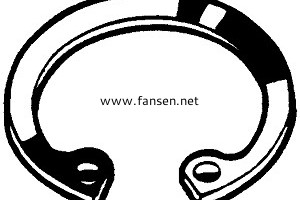

DIN472 Circlets For Bores孔用擋圈
Dimension mm | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
HoleDiameter d1 mm | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
GrooveDiameter d2 mm | 8.4 | 9.4 | 10.4 | 11.4 | 12.5 | 13.6 | 14.6 | 15.7 | 16.8 |
Thickness s mm | 0.8 | 0.8 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Dimension mm | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 |
HoleDiameter d1 mm | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 |
GrooveDiameter d2 mm | 17.8 | 19 | 20 | 21 | 22 | 23 | 24.1 | 25.2 | 26.2 |
Thickness s mm | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1.2 | 1.2 |
Dimension mm | 26 | 27 | 28 | 29 | 30 | 31 | 32 | 33 | 34 |
HoleDiameter d1 mm | 26 | 27 | 28 | 29 | 30 | 31 | 32 | 33 | 34 |
GrooveDiameter d2 mm | 27.2 | 28.4 | 29.4 | 30.4 | 31.4 | 32.7 | 33.7 | 34.7 | 35.7 |
Thickness s mm | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.5 |
Dimension mm | 35 | 36 | 37 | 38 | 39 | 40 | 42 | 45 | 47 |
HoleDiameter d1 mm | 35 | 36 | 37 | 38 | 39 | 40 | 42 | 45 | 47 |
GrooveDiameter d2 mm | 37 | 38 | 39 | 40 | 41 | 42.5 | 44.5 | 47.5 | 49.5 |
Thickness s mm | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.75 | 1.75 | 1.75 | 1.75 |
Dimension mm | 48 | 49 | 50 | 51 | 52 | 53 | 54 | 55 | 56 |
