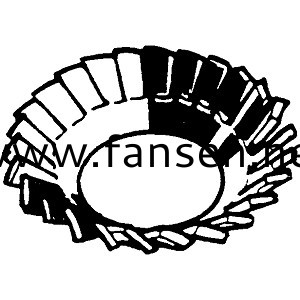

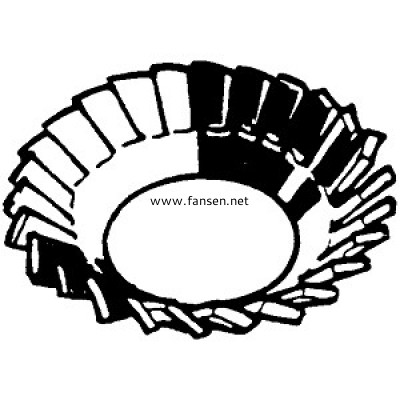

DIN6798V Serrated Countersunk Lock Washer External Gear Type V 內(nèi)鋸齒鎖緊墊圈（V型）
.jpg "圖片關(guān)鍵詞")

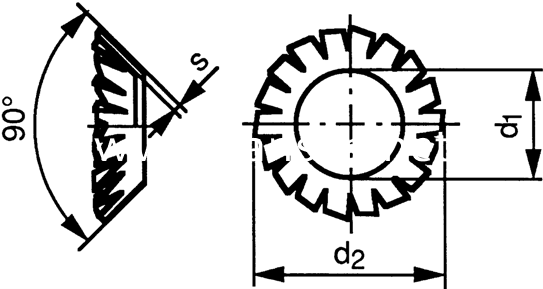

Thread | M2 | M2.5 | M3 | M3.5 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 |
Nominal | 2.2 | 2.7 | 3.2 | 3.7 | 4.3 | 5.3 | 6.4 | 8.4 | 10.5 | 13 | 15 | 17 |
Hole Diameter d1 | 2.2 | 2.7 | 3.2 | 3.7 | 4.3 | 5.3 | 6.4 | 8.4 | 10.5 | 13 | 15 | 17 |
Overall Diameter d2 | 4.2 | 5.1 | 6.0 | 7.0 | 8.0 | 9.8 | 11.8 | 15.3 | 19 | 23 | 26.2 | 30.2 |
Thickness S | 0.2 | 0.2 | 0.2 | 0.25 | 0.25 | 0.3 | 0.4 | 0.4 | 0.5 | 0.5 | 0.6 | 0.6 |
number of teeth | 10 | 10 | 12 | 12 | 14 | 14 | 16 | 18 | 20 | 26 | 28 | 30 |
